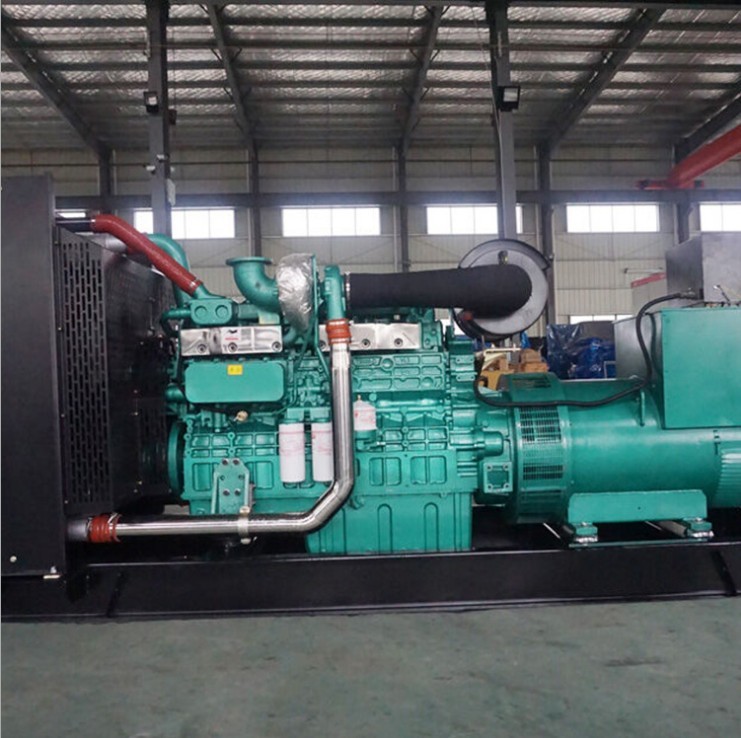

YC6T660L-D20 Engine Open Diesel Generator 400kw 500KVA
| Brand Name:: | Guangxi Yuchai Open Diesel Generator 400KW | Rated Voltage:: | 400V/230V |
|---|
| Engine Model:: | YC6T660L-D20 | Rated Current:: | 720A |
|---|
| Frequency:: | 50Hz/60Hz | Alternator:: | MBV5B |
|---|
| Control Panel:: | Deepsea / Harsen / Smartgen | Certificate:: | ISO 9001:14000,CE |
|---|
| ATS:: | Optional | Delivery:: | 7-30 Days |
|---|
| Warranty Time:: | 1 Year | Genset Dimension:: | 3460×1200×1800mm |
|---|
| Genset Weight:: | 3500kgs | Speed:: | 1500rpm/1800rpm |
|---|
| Model Number:: | MB-400 |
|---|
| High Light: | 400kw Open Diesel Generator,
YC6T660L-D20Open Diesel Generator
|
|---|
Product Description
Weichai YC6T660L-D20 diesel generator sets features:
(1). Full control panel with power indicator light and oil light.
(2). Emergency shutdown for low oil pressure and high water
temperature.
(3). Large fuel tank ensure continuous running.
(4). Low noise & vibration.
(5). Compact structure.
(6). Reliable performance.
(7). Easy for installation and maintenance.
Painting materials
rust removing in pickling
tank(10minutes)------unoil(30mins)-----rinsing(3mins)----wathsetting(10mins)----rinsing(5mins)-----parkerising(20mins)----rinsing----blow
dry-----stoving----pylons----spray paint(adopt static flame
paint)-----Oven(170degree/20mins)-----draw a charge---inserting
coil.
| Manufacturer | Changsha Mingbang Intelligent Technology Co.Ltd |
| Model | MB-400 |
| Prime Power | 400KW/500KVA |
| Power Factor | COSΦ=0.8(lagging) |
| Max. Output current | 720A |
| Genset Weight | 3500KG |
| Length x Width x Height (Engine) (mm) | 3460×1200×1800mm |
| Voltage | 400/230V |
| Frequency | 50HZ |
| Engine Specification |
| Manufacturer | Guangxi Yuchai Engine |
| Model | YC6T660L-D20 |
| Rated speed | 1500rpm |
| Prime Power | 441KW |
| Standby Power | 485KW |
| Fuel Consumption | ≤210g/kw.h |
| Lube oil capacity | 50L |
| Bore (mm) x Stroke (mm) | 126×155mm |
| Displacement (litre) | 16.35 |
| Coolant capacity, L | / |
| Configuration | 6 cylinder V-type, four stroke, water air cooling |
| Cooling | Liquid Cooled |
| Governor type | Electronic |
| Starting voltage | 24 Volts DC |
| Filtration system | Air Filter/Fuel Filter/Oil Filter |
| Alternator Specification |
| Manufacturer | Changsha Mingbang Intelligent Technology Co.Ltd |
| Model | MBC5B |
| Voltage Regulator | AVR |
| Voltage adjust range | ±1% |
| Rated Voltage/Frequency/Factor | 400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire |
| Steady-state Frequency | 5% |
| No-load Voltage Adjust Range | >=95%-105% |
| Insulation Class | H |
| IP Protection | 22 |
| Excitation Type | Blushless |
| Rated power | Engine | Alternator | Control panel |
| 24kw~1500kw | Cummins | Stamford
Leroy somer
Marathon
Mecc alte
ABB
Chinese alternators | Deepsea
ComAp
Harsen
Smartgen |
| 36kw~18+00kw | Perkins |
| 68kw~560kw | Volvo |
| 20kw~200kw | Deutz |
| 40kw-2200kw | Yuchai |
| 50kw-2200kw | Weichai |
| 540kw-1900kw | Mitsubishi |
| 50kw-800kw | SDEC |
| 650kw~2200kw | Chinese engine |
Our factory
Mingbang Power Perkins Diesel Generating Set, power ranging from
45kVa up to 2250kVa. Perkins is the world's top engine brand, for
more than 80 years, UK Perkins has been the world's leading
supplier of diesel and gas engines in the 4 - 1800 kW market.
Perkins key strength is its ability to tailor engines precisely to
meet customers' requirements, which is why its engine solutions are
trusted by more than 1,000 leading manufacturers in the industrial,
construction, agricultural, materials handling and electrical power
generation markets.
Our factory has CCEC, DCEC, VOLVO, PERKINS,MTU,Deutz, Daewoo, SDEC,
Weichai,Jichai etc. World and Chinese famous engine for generators
set. We have specialized in synchronous 100%copper wire alternator
for more than 20 years. MB brand alternator has been expanded all
over the world. The power range of our generator is from
6.5KW~2000KW.
