Industrial Hospital Weichai 300kw 375kva Emergency Diesel Generator set

    Buy cheap Industrial Hospital Weichai 300kw 375kva Emergency Diesel Generator set from wholesalers

    Buy cheap Industrial Hospital Weichai 300kw 375kva Emergency Diesel Generator set from wholesalers
    • Buy cheap Industrial Hospital Weichai 300kw 375kva Emergency Diesel Generator set from wholesalers
    • Buy cheap Industrial Hospital Weichai 300kw 375kva Emergency Diesel Generator set from wholesalers

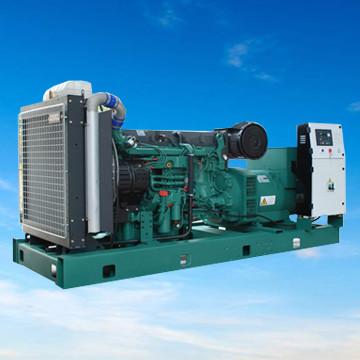

    Industrial Hospital Weichai 300kw 375kva Emergency Diesel Generator set

    Ask Lasest Price
    Brand Name : Weichai engine
    Model Number : WP13D385E200
    Certification : ISO 9001:14000,CE,EACC
    Price : Price:Negotiable
    Payment Terms : Western Union,T/T,D/P,L/C
    Supply Ability : 200pcs/month
    Delivery Time : 7-30days
    • Product Details
    • Company Profile

    Industrial Hospital Weichai 300kw 375kva Emergency Diesel Generator set

    Weichai WP13D385E200 diesel generator sets features:


    (1) .Full control panel with power indicator light and oil light.
    (2).Emergency shutdown for low oil pressure and high water temperature.
    (3).Large fuel tank ensure continuous running.
    (4).Low noise & vibration.
    (5).Compact structure.
    (6).Reliable performance.
    (7).Easy for installation and maintenance.

    Industrial Hospital Weichai 300kw 375kva Emergency Diesel Generator set



    ManufacturerChangsha Mingbang Intelligent Technology Co.Ltd
    ModelMB-300
    Prime Powder300KW/375KVA
    Power FactorCOSΦ=0.8(lagging)
    Max. Output current540A
    Genset Weight2500kkg
    Length x Width x Height (Engine) (mm)3050×1200×1650mm
    Voltage400/230V
    Frequency50HZ
    Engine Specification
    ManufacturerWeichai Engine
    ModelWP13D385E200
    Rated speed1500rpm
    Prime Powder350KW/437.5KVA
    Standby Powder385KW/481.25KVA
    Fuel Consumption≤205g/kw.h
    Lube oil capacity36L
    Bore (mm) x Stroke (mm)127×165 mm
    Displacement (litre)14
    Coolant capacity, L/
    Configuration6 in line ,four-stroke, Turbocharged, Charge Air Cooled
    CoolingLiquid Cooled
    Governor typeElectronic
    Starting voltage24 Volts DC
    Filtration systemAir Filter/Fuel Filter/Oil Filter
    Alternator Specification
    ManufacturerChangsha Mingbang Intelligent Technology Co.Ltd
    ModelMBC4E
    Voltage RegulatorAVR
    Voltage adjust range±1%
    Rated Voltage/Frequency/Factor400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
    Steady-state Frequency5%
    No-load Voltage Adjust Range>=95%-105%
    Insulation ClassH
    IP Protection22
    Excitation TypeBlushless

    Industrial Hospital Weichai 300kw 375kva Emergency Diesel Generator set

    Industrial Hospital Weichai 300kw 375kva Emergency Diesel Generator set

    Rated powerEngineAlternatorControl panel
    24kw~1500kwCumminsStamford
    Leroy somer
    Marathon
    Mecc alte
    ABB
    Chinese alternators
    Deepsea
    ComAp
    Harsen
    Smartgen
    36kw~18+00kwPerkins
    68kw~560kwVolvo
    20kw~200kwDeutz
    40kw-2200kwYuchai
    50kw-2200kwWeichai
    540kw-1900kwMitsubishi
    50kw-800kwSDEC
    650kw~2200kwChinese engine


    Our factory

    Our factory has CCEC, DCEC, VOLVO, PERKINS,MTU,Deutz, Daewoo, SDEC, Weichai,Jichai etc. World and Chinese famous engine for generators set. We have specialized in synchronous 100%copper wire alternator for more than 20 years. MB brand alternator has been expanded all over the world. The power range of our generator is from 6.5KW~2000KW.



    Hotel Plant Industrial Hospital Emgerncy Power Emgency Diesel Generator 300kw 375kva


    1.Components of 300kw rainproof electric generator


    1a. Diesel engine

    1b. Alternator

    1c. Control panel

    1d. The accessories, Wave pipe, Curved Pipe, Muffler, Accumulator, The connecting wires, Shock absorber spacer, Bellows, Documents and data and so on


    Main Features

    Product feature of Low Noise Electric Start Diesel Generator Perkins 300kw:

    1. High strength base frame material can significantly reduce the vibration during operation.

    2. Marvelous spray coating technology can effectively prevent against rain and noise.

    3. Special sound absorbing material and system can maximally reduce noise to 65dBA/7m


    Pre-sale service
    Provide specification parameter and consultants service, customized design optional.
    According the requirement of customer we
    can design and offer a complete set of equipment, such as mute device and heat treatment device and so on.
    After –sale service
    Installation guide and maintenance manual
    Guide user to install the machine and free debugging machine for free.
    Training the operator for the user, cooperate with the user finish the acceptance work.
    Tracking service
    Regularly consult feedback from end user ,avoid potential problem and solve problem in time.


    FAQ:

    Q1: Are you a trading company or manufacturer?

    A: We are a factory and exporter.

    Q2: What is the power range of your diesel generator?

    A: We can provide power from 6KVA-5000KVA

    Q3: How long is your delivery time?

    A: 1-4 weeks

    Q4: What are your terms of payment?

    A: T/T 30% in advance and TT 70% balance paid before shipment or 100% LC at sight.

    Q5: What is your warranty period?

    A: Our payment terms are 1 year or 1000 running hours whichever comes first. But based on some special projects, we can extend our warranty period.

    Q6: Do you offer OEM service?

    A: Yes

    Q7: How could I trust you?

    A: Diesel Generators Service & Supply comply with all the standards about Diesel Power Supply Equipments requirements. If you are not convinced by the pictures, videos, check-in reports, load tests, customer experiences and sales associates' knowledge about the generator you are interested in, then we invite you to come visit our expansive yard and shop facility to witness a load test and see the professional operation we have to go on here.


    More details for diesel generator sets ,please contact us any time

    Your further inquiry will be welcome!!
