| 1000KW Cummins Diesel Genset Specification |
| Manufacturer | Changsha Mingbang Intelligent Technology Co.Ltd |
| Model | MB-C800 |
| Prime Powder | 1000KW/1250KVA |
| Power Factor | COSΦ=0.8(lagging) |
| Max. Output current | 1800A |
| Genset Weight | 9200KG |
| Length x Width x Height (Engine) (mm) | 4750×1850×2430 |
| Voltage | 400/230V |
| Frequency | 50HZ |
| Cummins Engine Specification |
| Manufacturer | Chongqing Cummins Engine Co. Ltd |
| Model | KTA38-G9 |
| Rated speed | 1500rpm |
| Prime Powder | 1089KW/1361.25KVA |
| Fuel Consumption | <=196g/KW.H |
| Lube oil capacity | 135L |
| Bore (mm) x Stroke (mm) | 159*159 |
| Compression ratio | 13.9:1 |
| Displacement (litre) | 37.8L |
| Coolant capacity, L | / |
| Configuration | 12 in V type ,four-stroke, Turbocharged, Charge Air Cooled |
| Cooling | Liquid Cooled |
| Governor type | Electronic |
| Starting voltage | 24 Volts DC |
| Filtration system | Air Filter/Fuel Filter/Oil Filter |
| Smartgen Alternator Specification |
| Manufacturer | Changsha Mingbang Intelligent Technology Co.Ltd |
| Model | MBV6F |
| Voltage Regulator | AVR |
| Voltage adjust range | ±1% |
| Rated Voltage/Frequency/Factor | 400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire |
| Steady-state Frequency | 5% |
| No-load Voltage Adjust Range | >=95%-105% |
| Insulation Class | H |
| IP Protection | 22 |
| Excitation Type | Blushless |

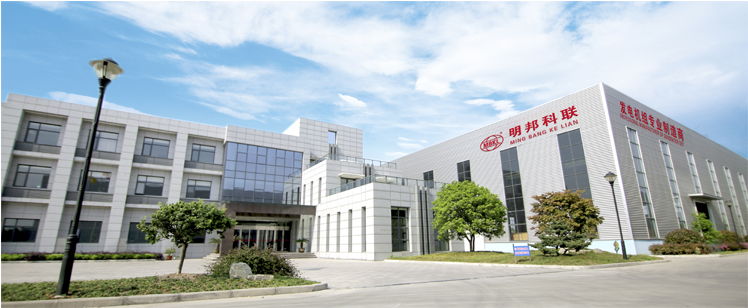

About MingBang Intelligent Technology
Mingbang Intelligent Technology Co.,LTD was established in
2005,occupies an area of 5042 square meters,located in Yangzhou
city,Jiangsu Province,which is the central part of manufacturing
industry zone in Southeast China near Shanghai
Mingbang works closely with all large power manufactures such as
Cummins, Perkins, Deutz,
Volvoand Chinese local brands SDEC,Yuchai,Jichai diesel generator
sets,engines with
Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators
,and so on. Key diesel
generator stock ranges from 10KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.
Whether you require support for an office, residential development
,industrial development or
shopping centre, hospital,railways,prison, hotal, airport ,bank
data centre, Mingbang will
support you the most reliable and most cost-efficient generators
and accessories.
Weclome to visit our factory!
FAQ:
<<<<<Changsha Mingbang Intelligent Technology Co.,
Ltd.>>>>>>>
1.Mingbang is devoted to the R&D and manufacturing of diesel generator
sets since 2005 2. Mingbang new factory covers an area of 5042 square meters
located in Jiang du industrial park of Yang zhou city. 3.Mingbang quality certified by ISO9001 & ISO14001 Management System to
guarantee high quality products and service. 5.Mingbang maintaining long term strategic friendship cooperation with
domestic and abroad famous manufactures of Cummins, Perkins, Doosan, SDEC, Mitsubishi(SME), Deutz, Wuxi Wandi,
Leroysomer, Stamford, and Marathon etc. 6.We have so wide products ranges from 5kva to 3000kva for the
diesel generator set; power from 25kva to 1500kva for gas generator
set; 7.Soundproof/weather proof type, container type generator set;
movable, vehicle type generator sets. Regarding to the electrical control systems, it covers Auto
control panel, Synchronization panels, ATS etc. 8.Mingbang can also provide customized solution due to customer
requirements upon our standard product supply in order to meet the
demand of market. To focus on global market, create AOSIF as
international brand, and constantly improve our quality level and
maximize customer profitability is AOSIF unchangeable promise and
eternal pursuit. |
More details for diesel generator sets ,please contact us any time
Your further inquiry will be welcome!!
