4016TAG1A Perkins Engine 1480KW 1850KVA Diesel Generator

    Buy cheap 4016TAG1A Perkins Engine 1480KW 1850KVA Diesel Generator from wholesalers

    Buy cheap 4016TAG1A Perkins Engine 1480KW 1850KVA Diesel Generator from wholesalers
    • Buy cheap 4016TAG1A Perkins Engine 1480KW 1850KVA Diesel Generator from wholesalers
    • Buy cheap 4016TAG1A Perkins Engine 1480KW 1850KVA Diesel Generator from wholesalers
    • Buy cheap 4016TAG1A Perkins Engine 1480KW 1850KVA Diesel Generator from wholesalers
    • Buy cheap 4016TAG1A Perkins Engine 1480KW 1850KVA Diesel Generator from wholesalers

    4016TAG1A Perkins Engine 1480KW 1850KVA Diesel Generator

    Ask Lasest Price
    Brand Name : MBKL
    Model Number : MB-P1480
    Certification : CE&ISO
    Price : USD$210000-USD$268000
    Payment Terms : L/C,T/T,
    Supply Ability : 200sets per month
    Delivery Time : 10 working days
    • Product Details
    • Company Profile

    4016TAG1A Perkins Engine 1480KW 1850KVA Diesel Generator

    1480kw with Perkins engine generator 1850kva powered by Perkins 4016TAG1A generator price



    Perkins diesel engine advantage



    1. Original Perkins diesel engine model :4016TAG1A
    2. Comfortable, lower vibration and noise.
    3.
    The emission requirements o fnon-road diesel engines have been meet , and some products hanveachieved
    the U.S.EPA, EuropeE-mark, india CPCB and other emission standars.



    1480KW 1850KVA Perkins diesel generator specification as below:



    Cummins Diesel Genset Specification
    ManufacturerJiangsu Mingbang Intelligent Technology Co.Ltd
    ModelMB-P1480
    Prime Powder1480KW/1850KVA
    Standby Powder1500KW/1875KVA
    Power FactorCOSΦ=0.8(lagging)
    Max. Output current2664A
    Genset Weight13777KG
    Length x Width x Height (Engine) (mm)5970×2775×3310mm
    Voltage400/230V
    Frequency50HZ/60HZ
    Cummins Engine Specification
    ManufacturerPerkins
    Model4016TAG1A
    Rated speed1500rpm
    Prime Powder1588KW/1985KVA
    Standby Powder1600KW/2000KVA
    Fuel Consumption<=212g/KW.H
    Lube oil capacity214L
    Bore (mm) x Stroke (mm)160*190
    Compression ratio13.6:1
    Displacement (litre)61L
    Coolant capacity, L95
    Configuration16 V type ,four-stroke, Turbocharged, Charge Air Cooled
    CoolingLiquid Cooled
    Governor typeElectronic
    Starting voltage24 Volts DC
    Filtration systemAir Filter/Fuel Filter/Oil Filter
    Alternator Specification
    ManufacturerJiangsu Mingbang Intelligent Technology Co.Ltd
    ModelMBV7D
    Voltage RegulatorAVR
    Voltage adjust range±1%
    Rated Voltage/Frequency/Factor400/230V, 60/50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
    Steady-state Frequency5%
    No-load Voltage Adjust Range>=95%-105%
    Insulation ClassH
    IP Protection23
    Excitation TypeBrushless

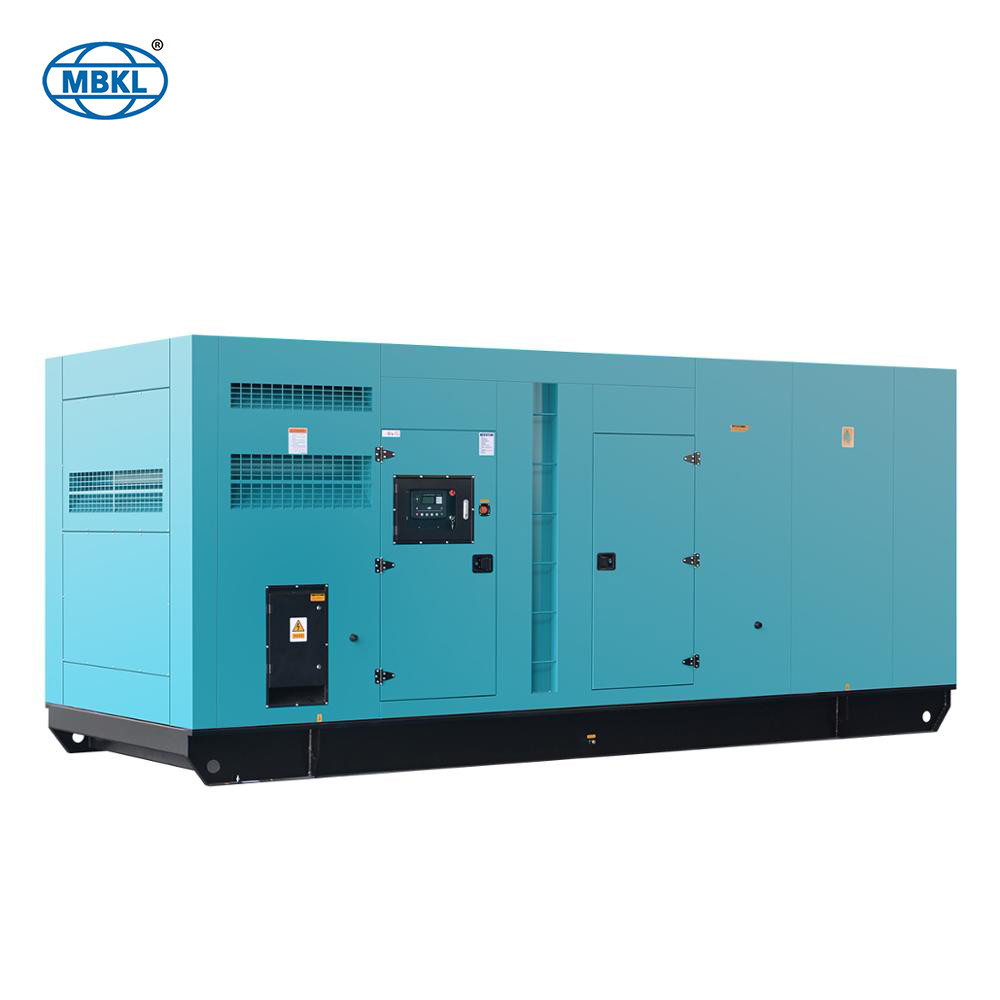

    Pictures for reference only as below:


    4016TAG1A Perkins Engine 1480KW 1850KVA Diesel Generator4016TAG1A Perkins Engine 1480KW 1850KVA Diesel Generator4016TAG1A Perkins Engine 1480KW 1850KVA Diesel Generator



    Applications:



    1. Industrial area: real estate, hospital, hotel, bank,construction, factory, oil field, airport, mining, railway

    2. Home use: personal use for house, camping, party, etc

    3. Telecom, Mobile tower, etc

    4. Island, Desert or any place without electricity

    5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow,

    6. Standby power or main power, indoor or outdoor using.



    About Mingbang company:



    Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai


    Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,Volvo and Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,

    and so on. Key diesel generator stock ranges from 3KVA to 3000 KVA, classifying silent generator, open generator ,
    container generator, mobile genset, and so on.


    Whether you require support for an office, residential development ,industrial development or shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will support you the most reliable and most cost-efficient generators and accessories. Weclome to visit our factory!




    RFQ


    1. What is your warranty period?


    Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).


    2. What is your payment terms?


    T/T 30% advance payment, the balance 70% shall be paid before shipment.
    L/C Irrevocable L/C at sight.


    3. What is your delivery time?


    As usually the delivery time is 7 to 15 working days.If you have special requirements, the delivery will be longer. Kindly contact us to confirm it.


    4. Can the generators be customized?


    Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.


    5. Can you use our logo?


    Yes. For mass orders, we can use customer's logo instead of ours.
