    Shanghai lingzhong(SME) High Power Electric Brushless 1000kw 1250kva Diesel Generators Sets Charging

    Ask Lasest Price
    Brand Name : Shanghai lingzhong(SME)
    Model Number : S12R-PTA-C
    Certification : ISO 9001:14000,CE,EACC
    Price : Price:Negotiable
    Payment Terms : Western Union,T/T,D/P,L/C
    Supply Ability : 200pcs/month
    Delivery Time : 7-30days
    • Product Details
    • Company Profile

    Shanghai lingzhong(SME) High Power Electric Brushless 1000kw 1250kva Diesel Generators Sets Charging

    Shanghai lingzhong(SME) S12R-PTA-C​​​ diesel generator sets features:

    1a. Diesel engine

    1b. Alternator

    1c. Control panel

    1d. The accessories, Wave pipe, Curved Pipe, Muffler, Accumulator, The connecting wires, Shock absorber spacer, Bellows, Documents and data and so on


    ManufacturerChangsha Mingbang Intelligent Technology Co.Ltd
    ModelMB-1000
    Prime Power1000KW/1250KVA
    Standby Power1100KW/1375KVA
    Power FactorCOSΦ=0.8(lagging)
    Max. Output current1800A
    Genset Weight8000KG(Net)
    Length x Width x Height (Engine) (mm)4900×2070×2500mm
    Voltage400/230V
    Frequency50HZ
    Engine Specification
    ManufacturerShanghai lingzhong(SME) Engine Co. Ltd
    ModelS12R-PTA-C
    Rated speed1500rpm
    Prime Power1080KW/1350KVA
    Standby Power1190KW/1487.5KVA
    Fuel Consumption≤213g/kw.h
    Lube oil capacity177L
    Bore (mm) x Stroke (mm)170×180
    Compression ratio14:05
    Displacement (litre)49.3L
    Coolant capacity, L/
    Configuration12 cylinder V type ,four-stroke, Turbocharged, Charge Air Cooled
    CoolingLiquid Cooled
    Governor typeElectronic
    Starting voltage24 Volts DC
    Filtration systemAir Filter/Fuel Filter/Oil Filter
    Alternator Specification
    ManufacturerChangsha Mingbang Intelligent Technology Co.Ltd
    ModelMBV6F
    Voltage RegulatorAVR
    Voltage adjust range±1%
    Rated Voltage/Frequency/Factor400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
    Steady-state Frequency5%
    No-load Voltage Adjust Range>=95%-105%
    Insulation ClassH
    IP Protection22
    Excitation TypeBlushless
    Rated powerEngineAlternatorControl panel
    24kw~1500kwCumminsStamford
    Leroy somer
    Marathon
    Mecc alte
    ABB
    Chinese alternators
    Deepsea
    ComAp
    Harsen
    Smartgen
    36kw~18+00kwPerkins
    68kw~560kwVolvo
    20kw~200kwDeutz
    40kw-2200kwYuchai
    50kw-2200kwWeichai
    540kw-1900kwMitsubishi
    50kw-800kwSDEC
    650kw~2200kwChinese engine

    Shanghai lingzhong(SME) High Power Electric Brushless 1000kw 1250kva Diesel Generators Sets ChargingShanghai lingzhong(SME) High Power Electric Brushless 1000kw 1250kva Diesel Generators Sets ChargingShanghai lingzhong(SME) High Power Electric Brushless 1000kw 1250kva Diesel Generators Sets Charging

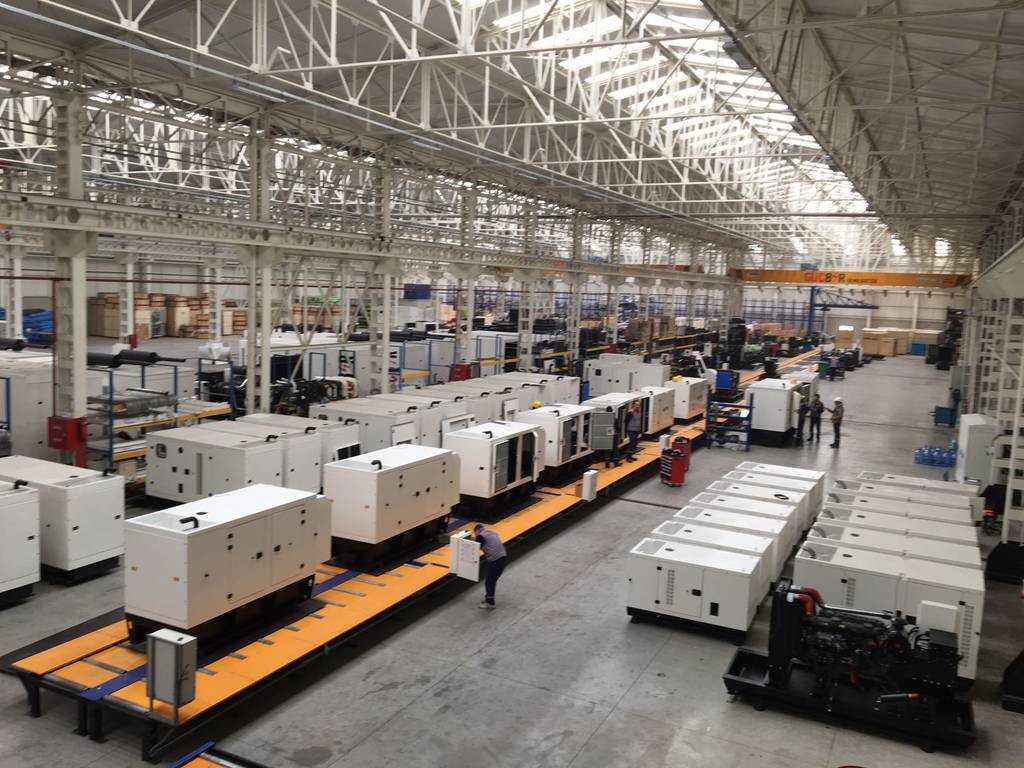

    Our factory

    Mingbang Co.,Ltd is one of the leading and largest world-wide producers and exporters for Diesel Generator (land diesel power generator&marine diesel generating set) and Gasoline Generator set from 1kva up to 2500kva. Transformed from a state owned enterprise and founded in 2005, Mingbang's Factory and generators assembling centers have more than two decades of experience in the design, research and manufacturing of diesel genset in strict compliance with ISO and CE standards. Up to being now, more than 20,000 sets of high quality generator set from mingbang have been working well in many fields including railways, oil fields, Schools, hospitals, banks, supermarkets, industries, tall buildings, sea ports and military bases etc.

    Shanghai lingzhong(SME) High Power Electric Brushless 1000kw 1250kva Diesel Generators Sets Charging

    1000kw 1250kva Power With Cummins Perkins Engine Electric Brushless Open Silent Soundproof Trailer Diesel Power Generato



    24 hours continuous stable power supply, in extreme or normal temperatures from -10 °C to 50 °C.

    Sutech Power generators are design to work 24*7 in extreme temperature conditions with minimum maintenance requirement.

    In some cases CHP & CCHP (Combined heat and power/ Combined cooling heat and Power) to utilized heat.

    Sutech Power specially designs Diesel and Gas CHP/CCHP Power generators to provide hot water or steam as well as Power.

    Lower noise level is important.

    Sutech power generators are made to be environment friendly with low emission and lower noise level

    Reliable AMF & ATS System (Auto mains failure & Auto transfer System) which can start and stop generators automatically with load transfer in case of city supply on or off.

    FAQ Of Shanghai lingzhong(SME) diesel generators prices

    Q1: How is your Package & Payment & Delivery Date & Warranty?

    A.1) Package: Plastic fiMB (free of charge) or wooden case (add USD200 for wooden)

    A.2) Payment: by 30% T/T as deposit, 70% balance should be paid 10 days before shipment. Or 100% L/C at sight.

    A.3) Delivery: 7-25 days after we get the down payment.

    A.4) Warranty: Guarantee for one year or 1000 running hours (whichever come first shall apply) from installed date. During the guarantee period. Such as Cummins or Perkins generators. They are international brands and the after-sale service is worldwide. You can contact your country's after-sale or contact us for repairment. When replacing spare parts, please kindly take some pictures to describe the problems. We will solve it ASAP.


    Shanghai lingzhong(SME) High Power Electric Brushless 1000kw 1250kva Diesel Generators Sets ChargingShanghai lingzhong(SME) High Power Electric Brushless 1000kw 1250kva Diesel Generators Sets ChargingShanghai lingzhong(SME) High Power Electric Brushless 1000kw 1250kva Diesel Generators Sets Charging

    More details for diesel generator sets ,please contact us any time

    Your further inquiry will be welcome!!

    Quality Shanghai lingzhong(SME) High Power Electric Brushless 1000kw 1250kva Diesel Generators Sets Charging for sale
